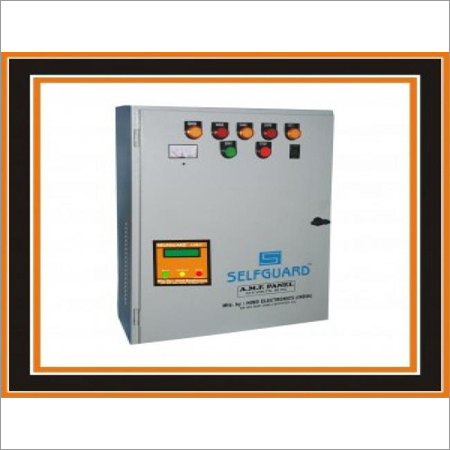

AMF Panel

AMF Panel
AMF Panel
Product Code : 06
Product Description
Owing to our expertise in this domain, we are offering our clients a broad array of AMF Panel that automatically transfers power load to mains supply during grid failure. Designed in accordance with the international quality standards, offered panel is manufactured using the finest grade metal alloys by our proficient workforce. To meet the varied demands of our clients, we are offering this AMF Panel in numerous specifications at an affordable price.

Features:

  • Inbuilt battery charger

  • Compact size

  • Shock proof

  • Easy installation

Specifications:

  • Single phase from 7.5kva to 40kva

  • Three phase from 15kva to 82.5kva

AMF panel with latest microcontroller based technology fabricated in sheet metal grey colour poweder coated finish available in single phase from 7.5 KVA to 40 KVa and in three phase from 15 KVA to 82.5 KVA. The panel is compatible with all type of branded and non branded generators.

Specifications

  • 1 Pilot lamp to indicate mains On .

  • 1 Pilot lamp to indicate generator On.

  • 1 Pilot lamp to indicate auto mode.

  • 1 Pilot lamp to indicate Fail to Start of Generator set.

  • 1 Pilot lamp to indicate when the battery is full charged battery.

  • 1 Amp. Meter to indicate the charging amp. of battery.

  • 1 push button for manual stop.

  • 1 push buttom for manual start.

  • 1 Toggle switch switch to select auto manual mode.

  • 1 Toggle switch to switch On/Off battery input.

  • 1 Digital V.A.F. meter to indicate voltage, amp., RPM and frequency when the generator is running.

  • 1. connection strip 12 way moulded in D.M.C. material .

  • 1 copper bus bar to connect A.M.F. panel with main supply, generator supply and load.

  • 1 connection strip 30amp. 6 way to connect A.M.F. panel with 12 volts battery, self start solenoid, stop solenoid, L.L.O.P. and H.W.T.

  • 3 Electro machenical relays for mains and 3 three electromachenical relays for generator according to the desired load.

  • Auto on timer device.

  • Auto/manual stop with generator as well as with mains time delay circuit.

  • Single phasing preventor to monitor each phase.

  • 1 Transformer to charge the battery during mains mode.

Working of A.M.F.

  • Auto start diesel generator on mains failure (even on single phase failure) after a delay time of 5 seconds.

  • Four more starting impulses if the engine does not start in one attempt with a delay time of 10 seconds everytime.

  • Automatic lock out if generator fails to start.

  • Auto changeover transfers load automatically on generator supply after the generator starts.

  • Auto stop diesel engine after the returning of all three phases with a delay time of 30 seconds.

  • Load is automatically transferred to mains

  • Inbuilt battery charger is provided to charge the battery during mains mode with auto cut and trickle boost charging facility which keeps the battery voltage stable.
