Product Code : dgsu-2 (three phase)
Brand Name : selfguard
Product Description

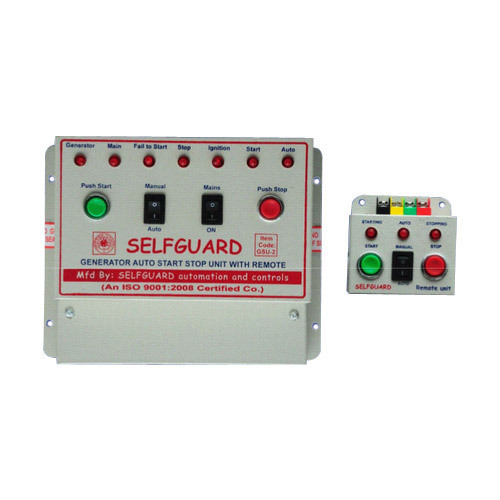

Generator auto start auto stop unit with remote. (Item Code: GSU-2)


The Microcontroller/microprocessor based automatic start cum stop unit with battery charger is designed to suit the necessary requirements of customer.
Housed in 205mm * 160mm * 85mm sheet metal powdered coated rust free body colour. Available from 5 kva to 600 kva
GSU-2 is suitable for the all types of generators
Indications- Generator, main,  Fail to start, stop, ignition, start,  Auto
Buttons- Manual Start Push, Mains ON/OFF Switch, Auto/Manual Selection Switch, Manual Stop/Reset Push
Diesel engine starts automatically after the absence of main supply in 5 sec. Four more starting impulses if the gen. set does not start in first stroke.
Diesel engine set stops automatically after the resumption of main supply with a delay time of 30 seconds.

The equipment can be operated in both Auto and Manual mode according to desired output from a unlimited distance with a wired remote provided with the unit. The generator can also be started manually by remote in maual mode.

Generator can be stopped any time either in the absence of mains in manual mode.
Working of Buttons
Manual Start push is used to start the generator manual in manual mode.
Mains on switch is used to stop the generator automatically during the presence of mains.
Auto/Manual selection switch is used to change the working status of unit.
Manual Stop push has 2 types of working.
1. To stop the engine manually when the unit is in manual mode.
2. To reset the unit in case of fail to start condition.

Working of Remote

To change the auto/manual mode

To start and stop the generator manually.

Note: When the unit is in manual mode the generator will stop automatically after the resumption of main supply
