Generator Remote Start Switch

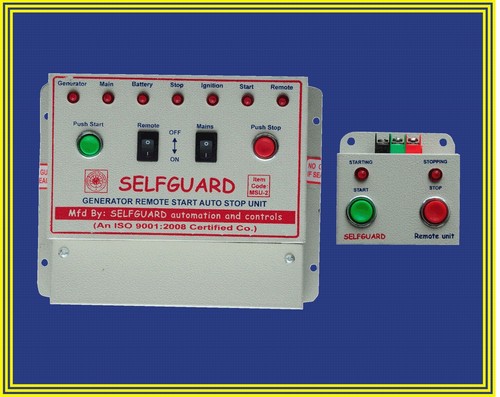

Generator Remote start auto stop unit (Item Code: MSU-2)
-The Microcontroller/microprocessor based automatic start cum stop unit is designed
to suit the necessary requirements of customer. The unit is suitable for all types of generators.
LED Indication: Generator On, Mains On,Battery, STop, Ignition,Start, Remote
Buttons: Manual Start, Remote Off/On, Mains Off/On, Manual Stop/Reset
- Diesel engine can be started manually with wired remote switch after the absence of main supply from a distance of upto 5000 metres.
- Just a 1mm 3 core wire is required to control the starting and stopping of generator
No matter how far the remote is from the main unit and no other cranking relay is required with in the wire.
- The ignition will switch On automatically when the generator will start.
- In case the generator stops due to any engine fault the ignition will not switch off
so that the fault can be visible.
- Diesel engine set stops and ignition also switches off automatically if the engine
stops in healthy condition after the resumption of main supply with a delay time of 30 seconds.
- Facility of stopping the generator after the resumption of all three phases is also available in case of three phases.
- Generator can be stopped any time either in the absence of mains supply with remote.
Working of Buttons
- Manual Start push is used to start the generator manually.
- Mains on switch is used to stop the generator automatically during the presence of mains.
- Remote Off/On switch is used to control the working of remote.
- Manual Stop push has 2 types of working.
1. To stop the engine manually when the unit is in manual mode.
2. To reset the unit in case of fail to start condition.
