LGS-2E

LGS-2E
LGS-2E
Product Code : 07
Product Description

LGS-2E

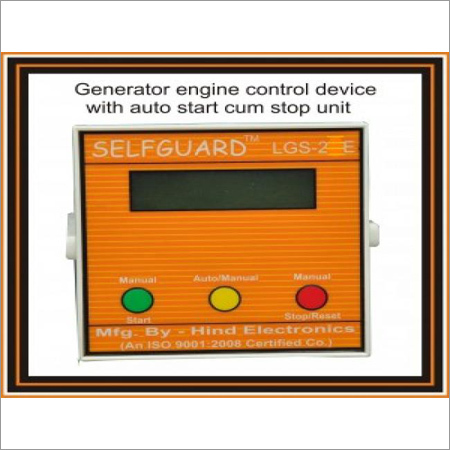

Engine control device with auto start cum stop unit (Item Code: LGS-2E)

Introduction -The Microcontroller/microprocessor based Engine Control cum Auto start and stop Device is designed to suit the necessary requirements of customer. - Backlit LCD display for easy reading of parameters. - All the inputs like main, generator and battery voltages are fully isolated to avoid malfunctioning of system. Suitable for all type of gensets. - Molded in 96mm * 96mm * 110mm plastic cabinet is suitable to mount in panel.

Display

Displays Voltage, Current, Frequency, RPM, Battery voltage and Engine run time when the generator is in running Condition.

Push Buttons-

Manual Start. - Auto/Manual - Manual Stop/Reset.

Protection and supervision

1. Engine safety : LLOP Trip, HWT Trip, LFL Trip and  service due time tripping.

2. Alternator safety features: Over and under voltage trip. - Over and under frequency trip. - Over and under RPM trip. - Over current trip.

Functions:

  • Diesel engine starts automatically after the absence of mains supply with a delay time of 5 sec. Four more starting impulses if the generator does not start in first crank.
  • Automatic lock oud and fail to start message is displayed if the generator does not starts.
  • All the parameters are displayed like voltage,frequency. current, RPM, Battery voltage and Engine run time.
  • If any of the fault occurs like LLOP, HWT, LFL or eninge service due the generator automatically stops and the fault is displayed.
  • The generator will not start unless the fault is not removed.
  • The unit can be operatedin manual mode also.
  • The over current tripping and Engine Service due time can be set manually.

Note: We provide the sensors also if required.
